ERI Linux Set Top Box Quad Core GX67 1080p H.265 IPTV

Place of Origin : Guangdong, China

MOQ : 10

Price : $13.80-18

Operating System : Linux

Processor Core : Quad Core

Processor : GX67

Supported Resolution : 1920 x 1080

Ethernet : 1 x 10/100MBps

WiFi : 802.11n 2.4GHz

USB Host : 1*USB 2.0

HD : H.265/HEVC

LAN : RJ45 10M/100M

Video Decoder : H.265 HEVC/H.264/H.263/MPEG-4/MPEG-2/AVS/AVS+/VC1

Power Supply : 12V 1A

CPU Frequency : 1500DMIPS 32bit

Flash Memory : 16MB

DDR3 Memory : 128MB

Video Output : CVBS*1, HDMI1.4

Contact Now

CPU
Main Chip	GX67
O.S	Linux
CPU Frequency	1500DMIPS 32bit
Flash	16MB
DDR3	128MB
System
IPTV protocol	HLS(M3U8),UDP,RTP,RTSP,RTMP,HTTP.
Content Protection	HDCP, Macrovision 7.1,CGMS-A
DRM	NSTV

Video Decoder
Video Decoder	HEVC/H.265,H.264,MPEG-4,H.263 P3,AVS,AVS plus,MPEG-2,MPEG-1
Video Output	CVBS*1, HDMI1.4
Video Format	PAL/NTSC
Aspect Ratio	4:3/16:9
Resolution	1080p, 1080i, 720p, 576p, 480p, etc

Audio Decoder
Audio Decoder	MPEG1 I/II, MP3,MPEG-4 AAC and AAC plus,DRA,
Audio Mode	Left/Right/Stereo
Sampling Frequency	32KHz, 44.1KHz, 48KHz

Front Panel Sample
LED Indicator	Dual Color LED(Green for working, Red for Standby)
IR Sensor	38KHz

Rear Panel Sample
RCA Output	1*AV Jack 3.5
USB2.0	1
HDMI	HDMI1.4
Power Adaptor Socket	12V 1A
LAN Port	10M/100M Ethernet/RJ-45

SOFTWARE CUSTOMIZATION

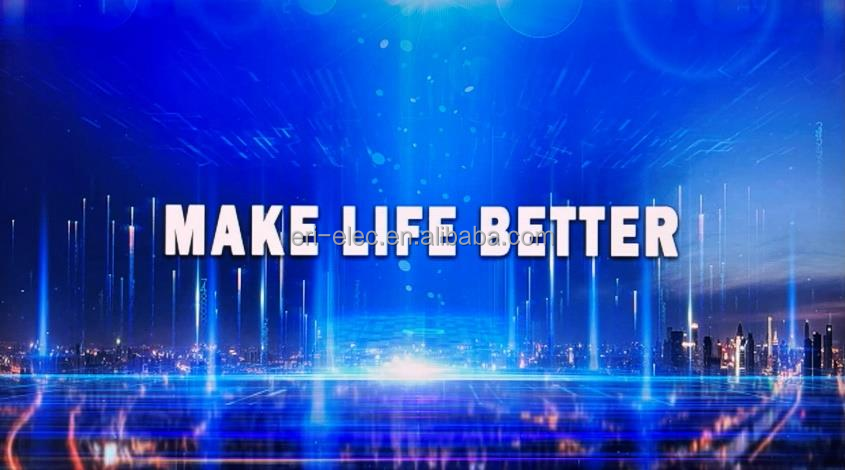

Boot logo (1280x720.jpg)

ERI Linux Set Top Box Quad Core GX67 1080p H.265 IPTV

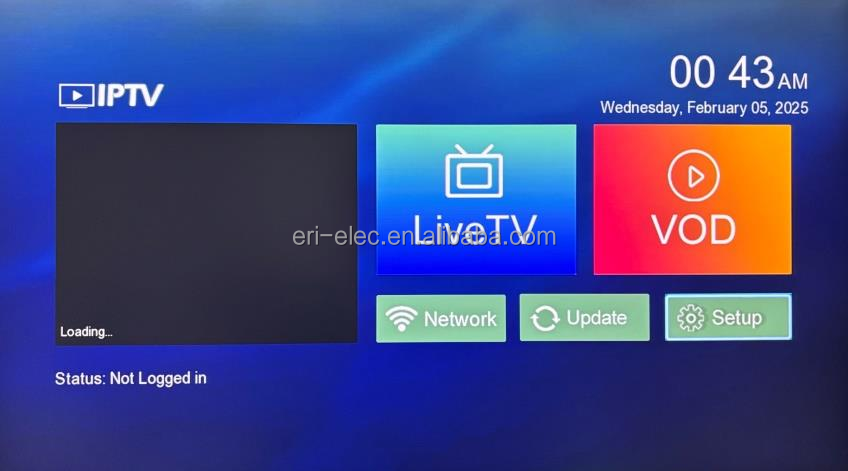

Home Menu (LiveTV and VOD App can be customized)

STB can play directly the channel after power on by request.

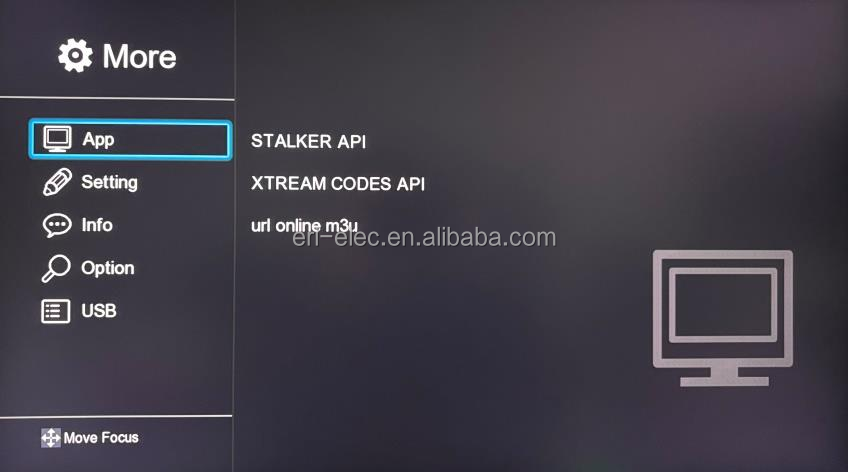

Setup Menu

STALKERX API: It is stalker protocol, Support login with stalker account.

XTREAM CODES API: It is xtream protocol, Support login with xtream account.

URL ONLINE M3U: It is HTTP/HLS/UDP live stream protocol, Support online

download M3U playlist from your server or USB download M3U playlist.

StalkerX APP menu

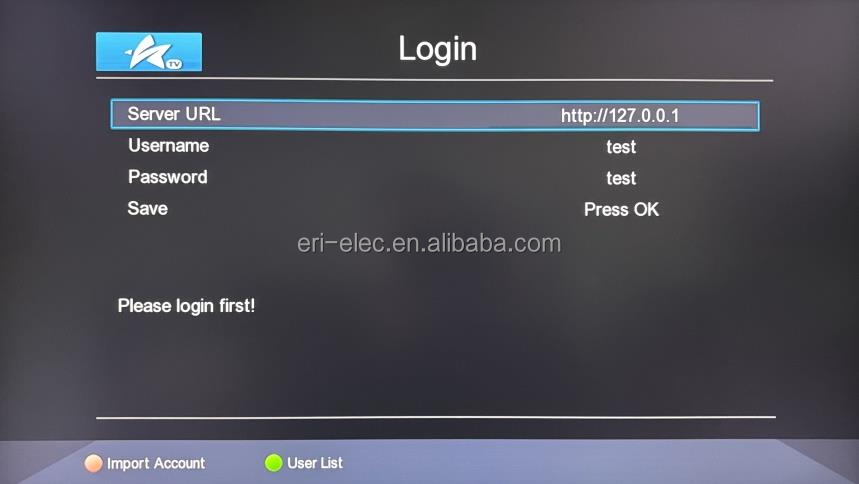

Stalker login menu

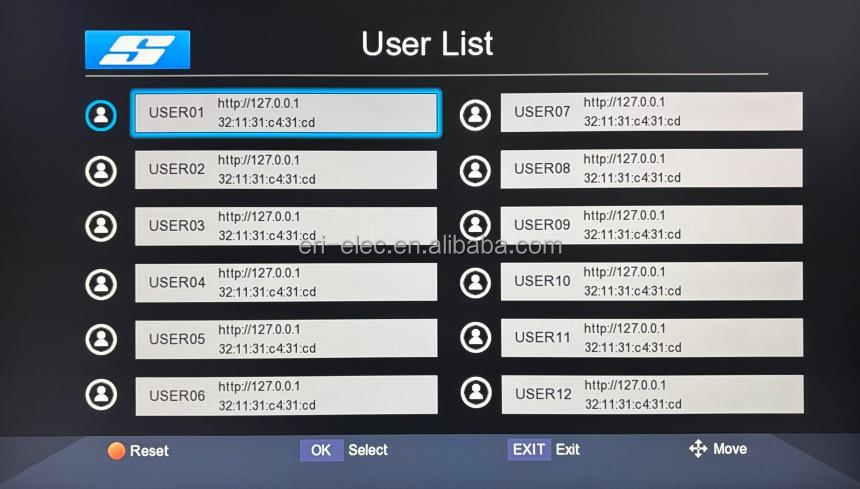

Support multi-account memory

Xtream APP menu

Xtream login menu

Support multi-account memory

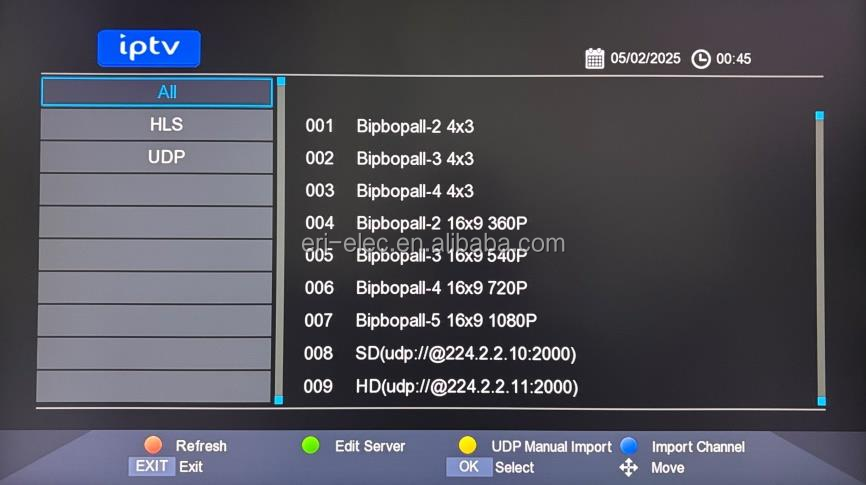

Customized IPTV APP menu

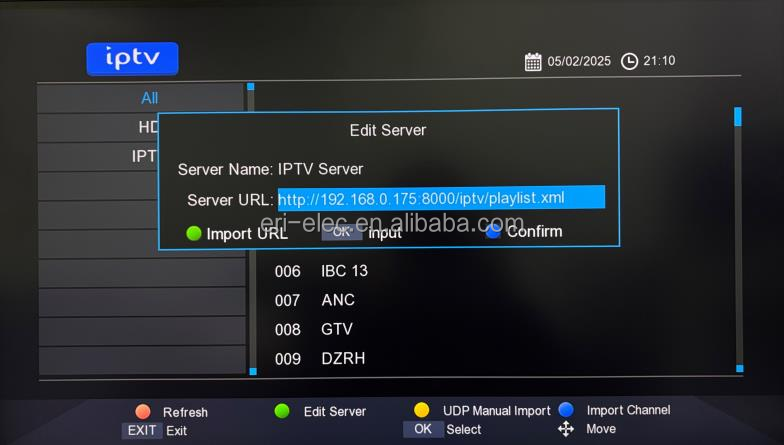

Support online download M3U/XML playlist, STB can preset the default Server

URL by request. Thus STB can update channel list automatically as below method:

Support to control the device service through MAC ID.

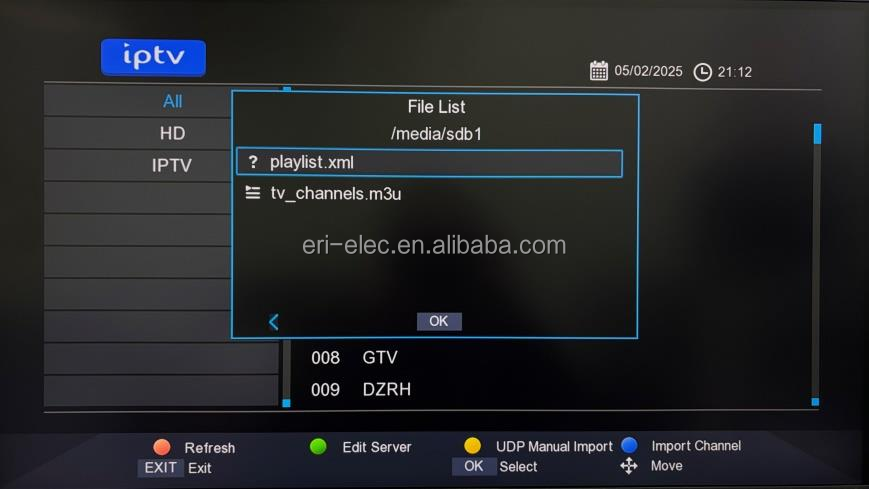

Support USB import channels with XML and M3U format.

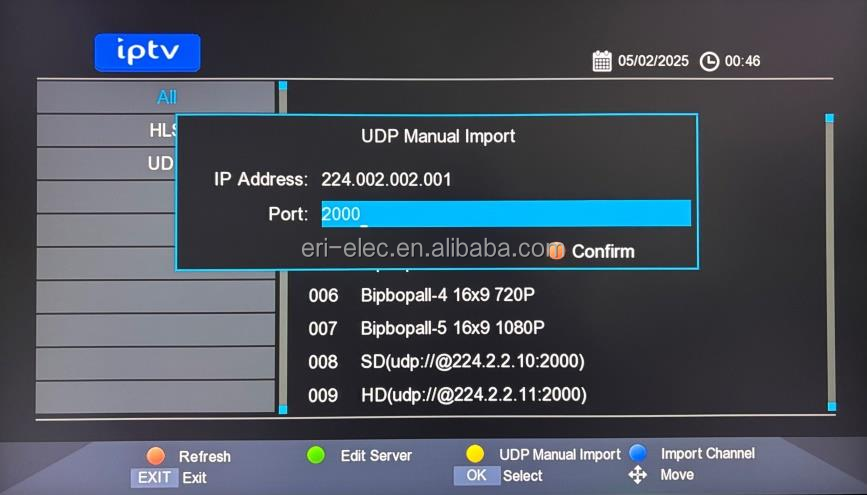

Support UDP import channels
